We have an extensive inventory of equipment available for rent. Click on the links below to learn more about specific items. If you are interested in renting our gear, please contact us directly.

Rigging

Load Sensors

Load Sensors

Truss

Truss

Ground Support

Ground Support

Pipe

Pipe

Motors

Motors

Motor Control

Motor Control

Chainfalls

Chainfalls

Hardware

Hardware

Lighting

LED

LED

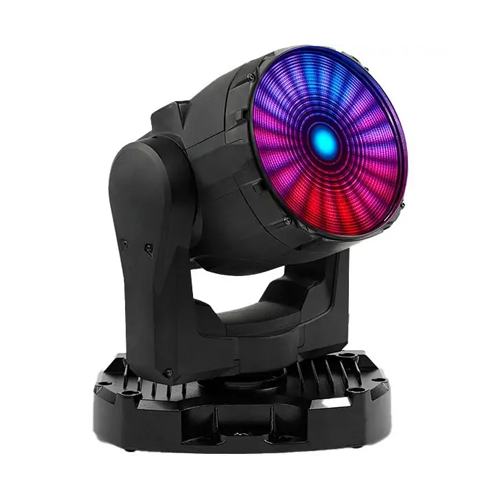

Moving Lights

Moving Lights

 Atmospherics

Atmospherics

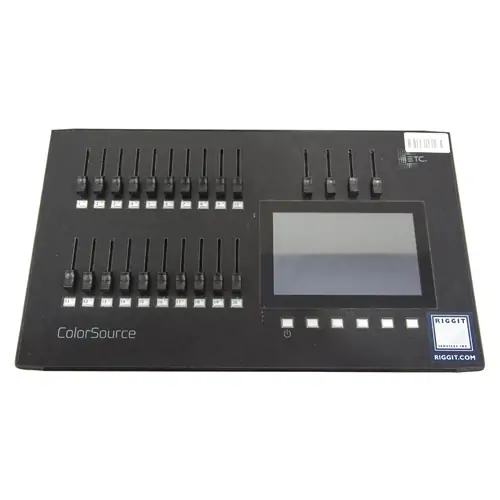

Consoles

Consoles

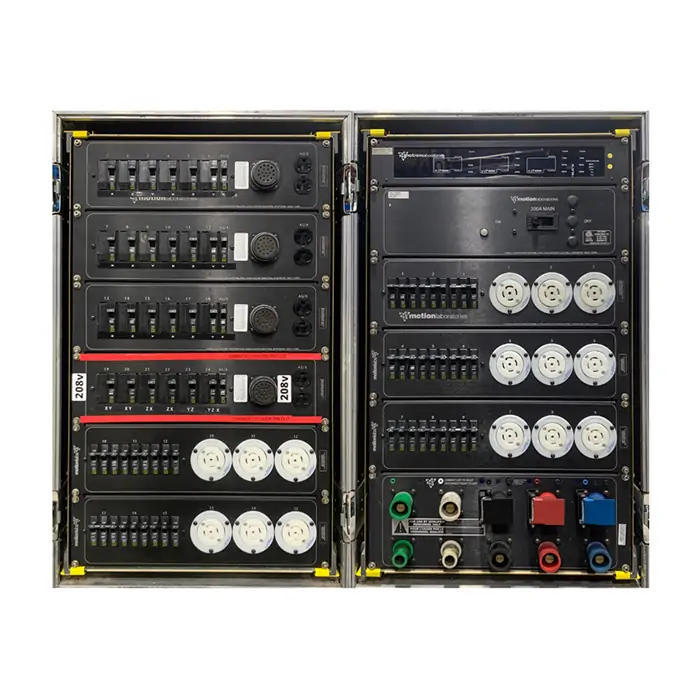

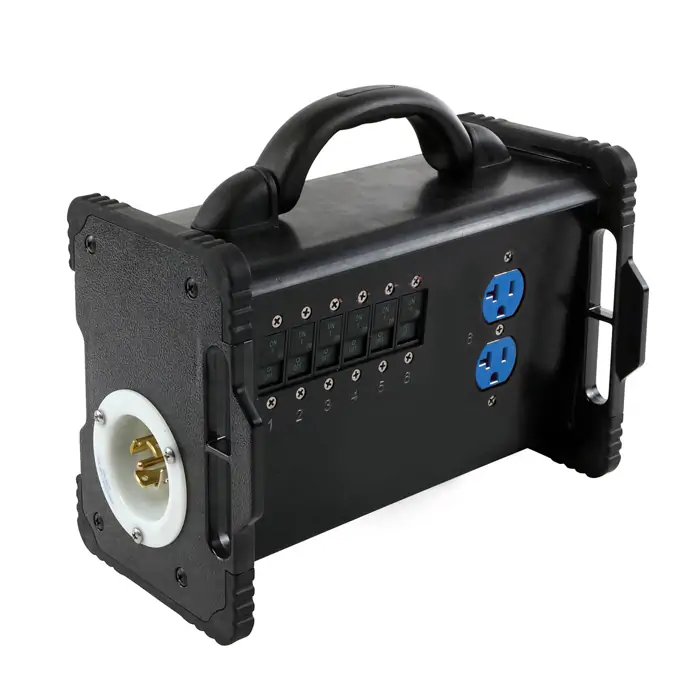

Power Distro

Power Distro

Dimming

Dimming

Rigging

Load Sensors

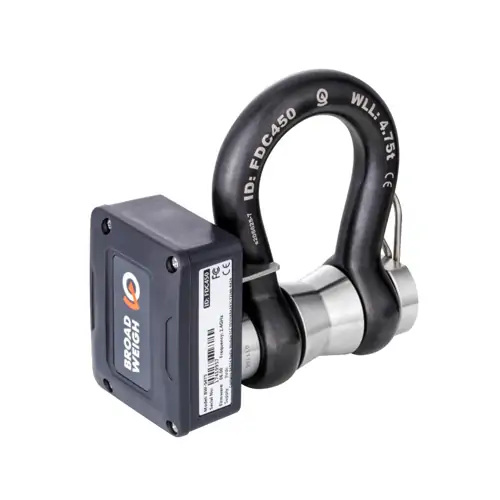

Catalogue image for Wireless 3.25T (5/8

Wireless 3.25T (5/8") or 4.75T (3/4") Load Sensor

View Load Sheet PDF

Broadweigh shackles are built to withstand the demands of challenging environments and weather conditions and enables monitoring and logging of precise loads on any given rigging point. Delivering wireless data to a choice of receivers, the system provides the tools to safely distribute weight for indeterminate loads, roof structures, mother-grids as well as indicate alarms to avoid rigging component overload situations. Using our custom designed Tufftride R surface treated BS EN 13889 bow, the aerospace grade stainless steel load pin is supplied with a load centralising bobbin as standard. Accuracy typically ±1% of current load or ±25 kg.

Available in either 3250 kg or 4750 kg weight range
Can transmit up to 800 m (1/2 mile)
Smart Sleep protects battery life whilst monitoring
Comfortable in the most challenging RF environments
Unit conversion for kg, lbs, tonnes, ton, ton (US), kN
Accuracy typically ± 1% of current load or ±25 kg (whichever is the greater value)
Fully weatherized (IP67)
Zero Trim Shackle
5:1 safety factor

Truss

A welded aluminum structure in standardize sizes designed with versatility in mind to support common products such as lighting fixtures. Preferred method of slinging the truss is a choke and wrap.

Catalogue image for 12

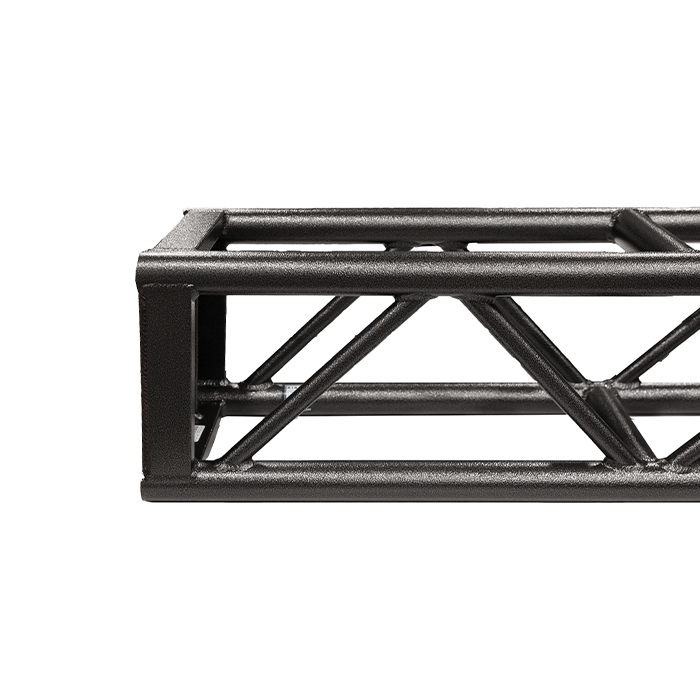

12" x 12" Light Duty Truss

View Load Sheet PDF

Finish: Natural
Lengths: 1′ | 2′ | 4′ | 6′ | 8′
Also Available: Corner Block

Catalogue image for 12

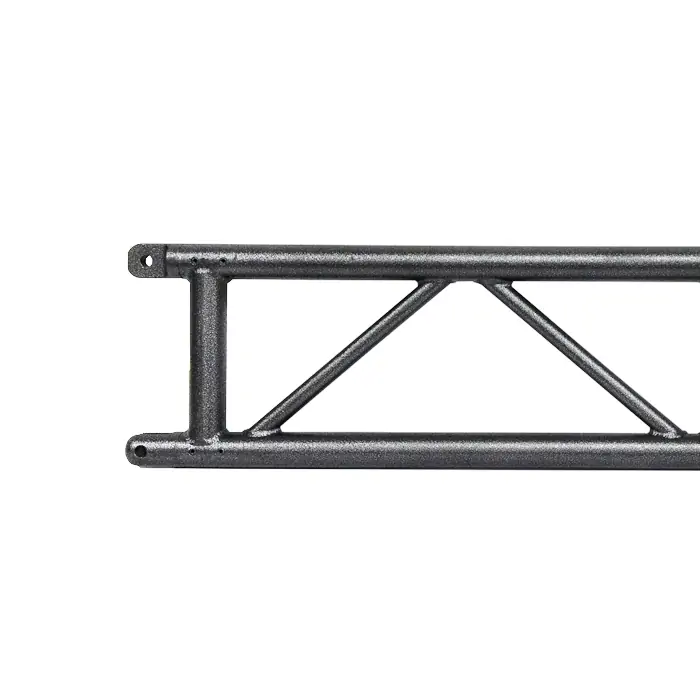

12" Ladder Truss

View Load Sheet PDF

Finish: Black Powder Coat
Lengths: 5′ | 10′
Also Available: 2-way, 3-way, and 4-way corners

Catalogue image for 16

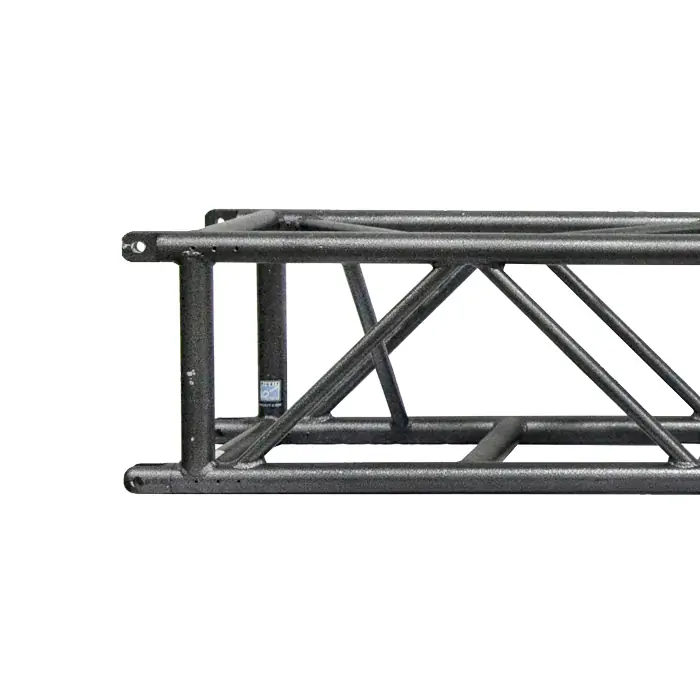

16" x 16" Medium Duty Truss

View Load Sheet PDF

Finish: Black Powder Coat
Lengths: 1′ | 2′ | 4′ | 8′
Also Available: Corner Block, Adapter Plate

Catalogue image for 16

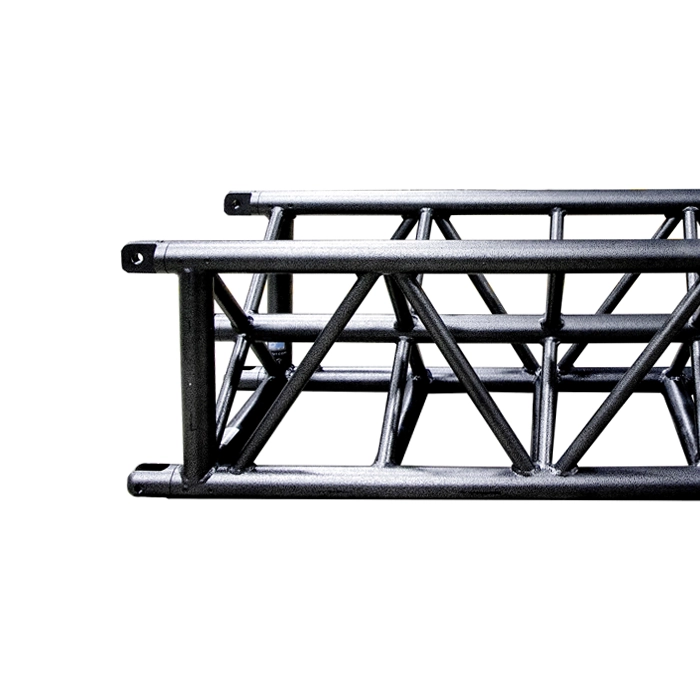

16" x 16" Medium Duty Channel Truss

View Load Sheet PDF

Finish: Powder Coat
Lengths: 2′ | 4′ | 8′

Catalogue image for 20.5

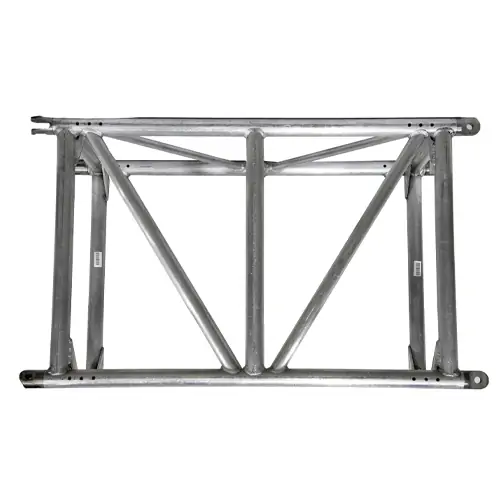

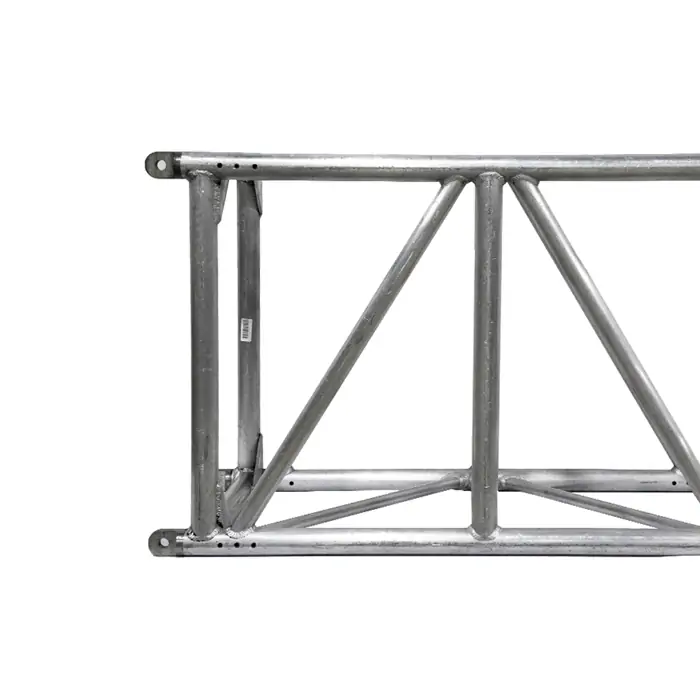

20.5" x 30" Heavy Duty Truss

View Load Sheet PDF

Finish: Natural
Lengths: 1′ | 4′ | 8′

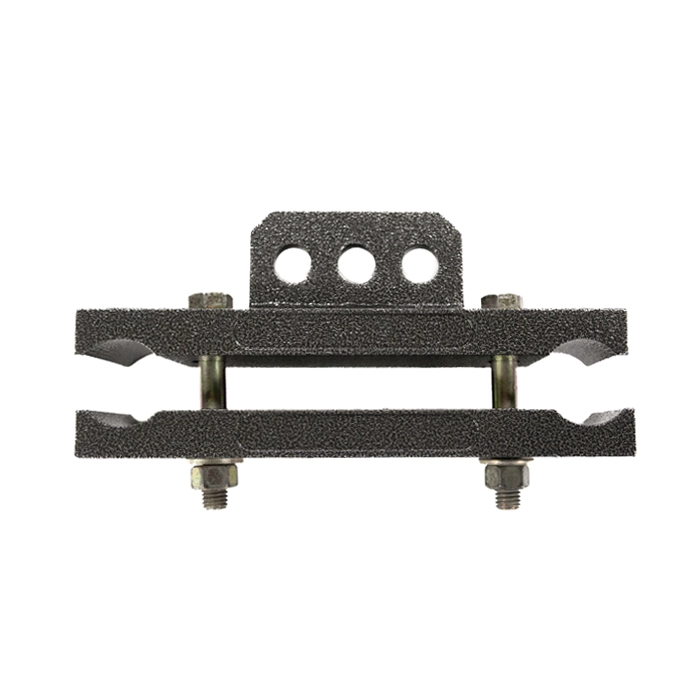

Catalogue image for 12

12" Truss Hanger & Grapple

View Load Sheet PDF

Finish: Natural

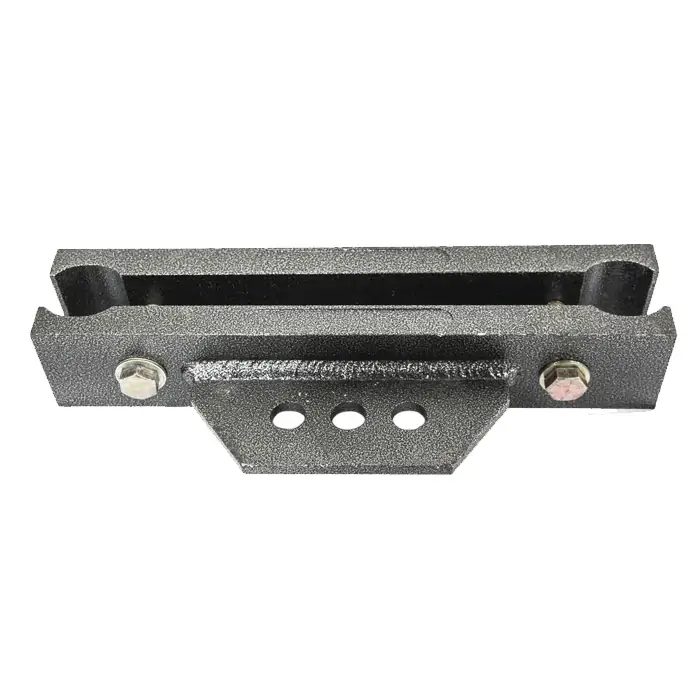

Catalogue image for 16

16" Truss Hanger & Grapple

View Load Sheet PDF

Finish: Powder Coat

Ground Support

Catalogue image for 20.5

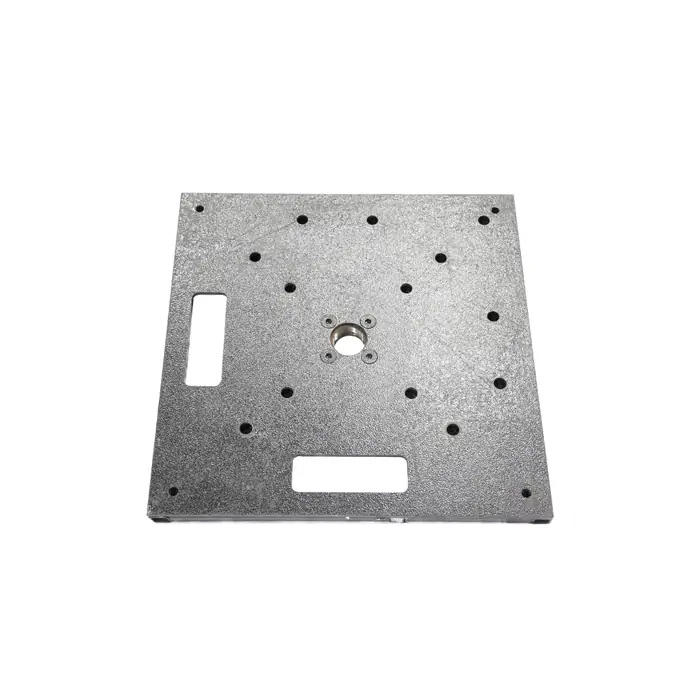

20.5" x 20.5” Base Plate

Center threaded hole for 1.5″ threaded pipe. Bolt holes for 12″ and 16″.

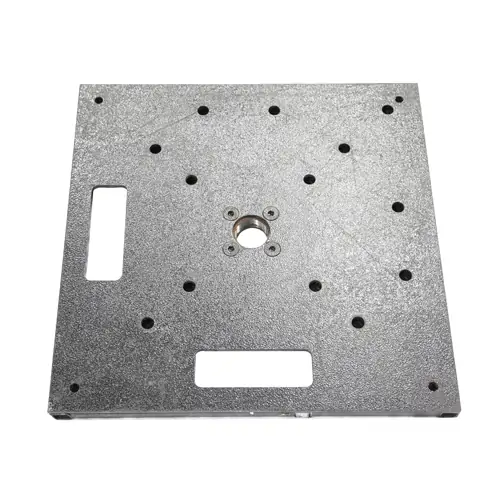

Catalogue image for 3' x 3' Base Plate

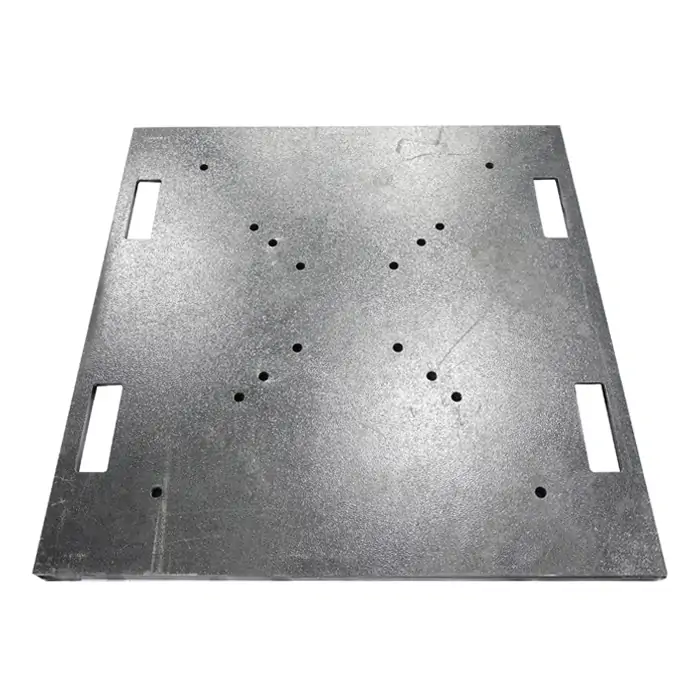

3' x 3' Base Plate

Bolt holes for 12″, 16″, and 20″ truss.

Catalogue image for Floor Fixture Stand

Floor Fixture Stand

Can either be set on the floor or it can be bolted to 12″ truss.

Catalogue image for Global Truss ST 132 Crank Stand

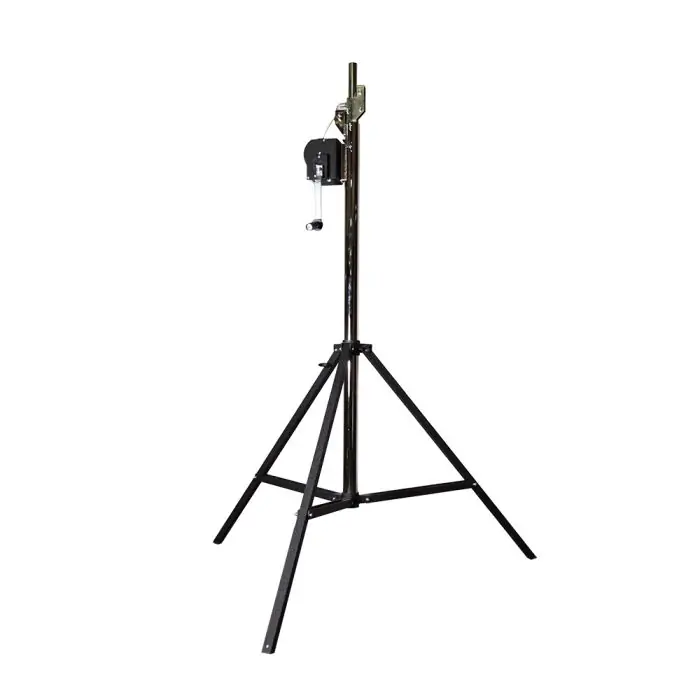

Global Truss ST 132 Crank Stand

View Load Sheet PDF

Easy assembly Ships with 4′ lighting bar.

Max Height:
13.2′
Min Height:
5.9′
Capacity:
220lbs
Weight:
55lbs
Footprint:
59″

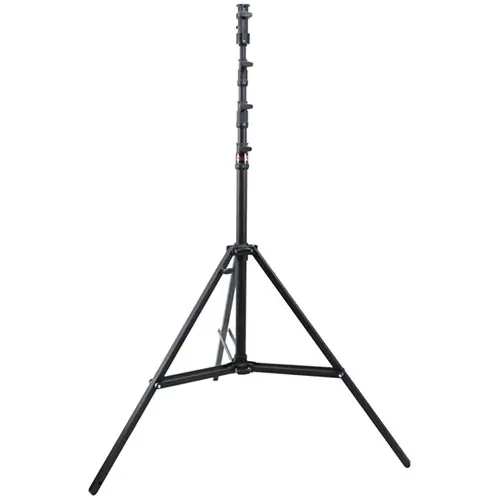

Catalogue image for Matthews Hollywood Combo Triple Riser

Matthews Hollywood Combo Triple Riser

Wider footprint and longer legs provide increased stability. Ships with 4′ Black aluminium pipe.

Max Height:
14.71
Min Height:
4.5′
Capacity:
68lbs
Weight:
32lbs
Footprint:
43″

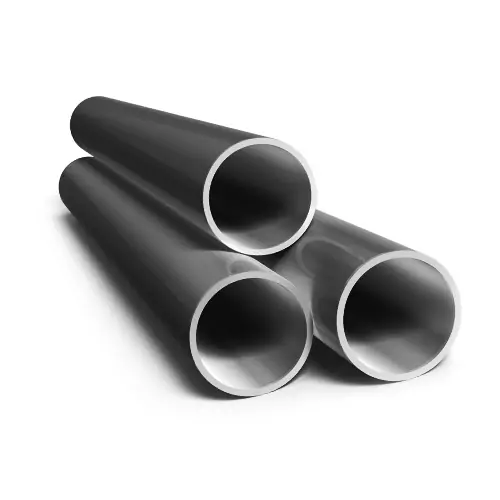

Pipe

Standard lengths are available in 2' increments up to 20'. Interior and outside pipe joiners available.

Catalogue image for 1.5

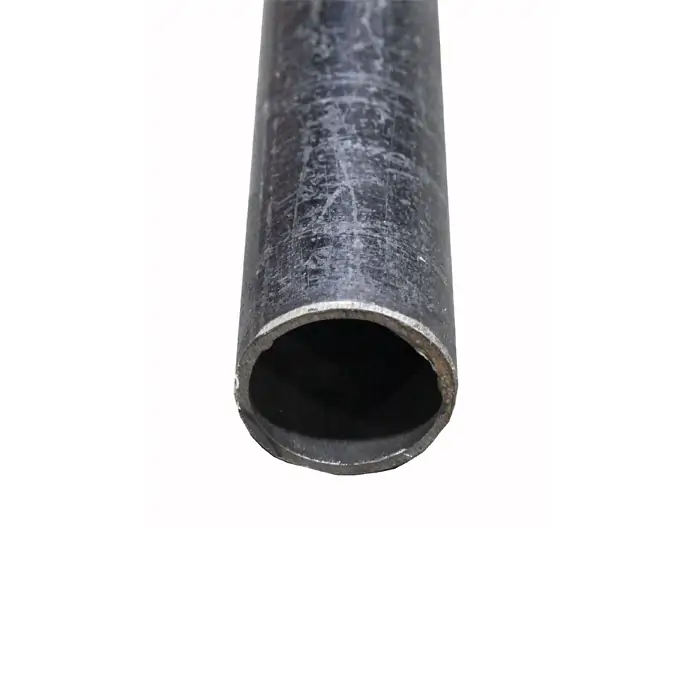

1.5" Steel Pipe Schedule 40

View Load Sheet PDF
Catalogue image for 1.5

1.5" Steel Pipe Schedule 80

View Load Sheet PDF
Catalogue image for 1.5

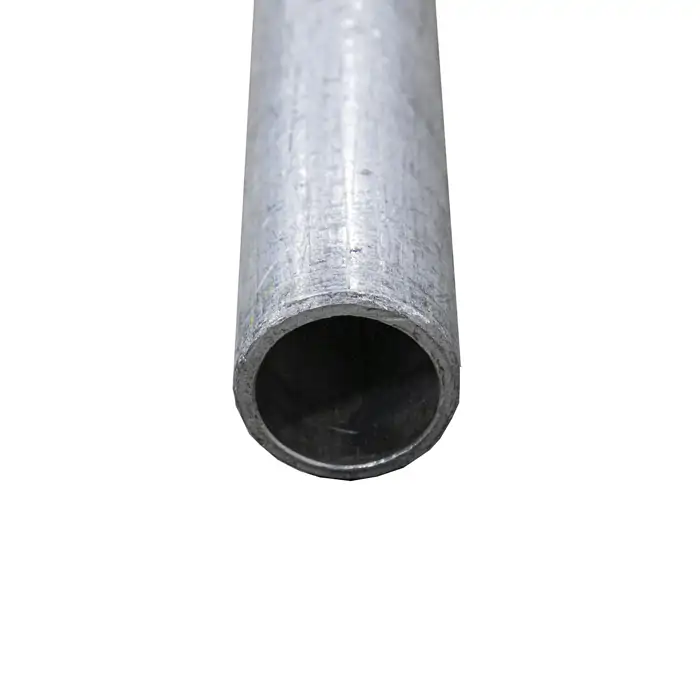

1.5" Aluminum Pipe Schedule 40

View Load Sheet PDF

Motors

Catalogue image for Tour Rig

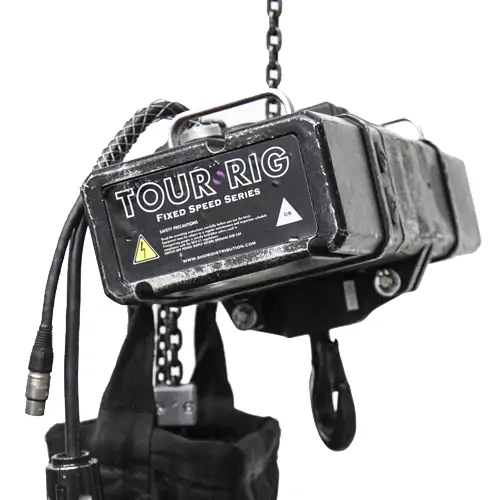

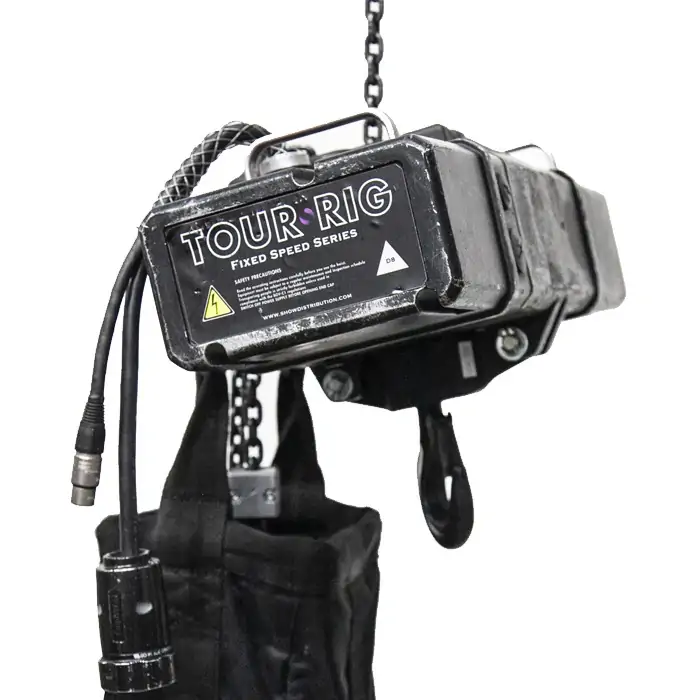

Tour Rig

Double Brake system, Single 7 pin socapex connector for power and control. Uses a 4 pin XLR pickle for independent control.

1/4 Ton – Standard lift 65′
1/2 Ton – Standard Lift 65′
1 Ton – Standard Lift 80′ (160′ or 192′ available by request)
2 Ton Double Reeved – Standard Lift 80′ (90′ available by request)

Also Available: Columbus McKinnon (CM) Lodestar: 1/2 Ton | 1 Ton | 2 Ton

Catalogue image for Dynapac Banner Rotating Motor

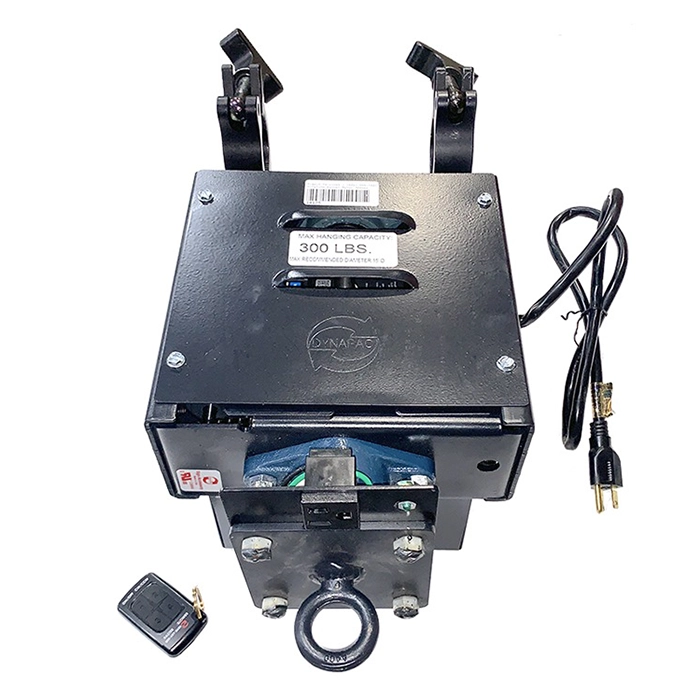

Dynapac Banner Rotating Motor

Designed for continuous 24-hour rotation. Whisper quiet, with smooth transitions, and wireless remote control up to 300′ line of sight.

Hanging Weight Capacity: 300lbs
Collector Ring Capacity: 15A at 115V – Edison
Input: 110VAC -3′ Edison
Amps: 0.45Amp
Variable Speed:0-4RPM
Control: Wireless Remote Control – 300′ line of sight
Direction: Direction Reverse Switch

Motor Control

Catalogue image for Skjonberg TR-8000 4 Chn. Motor Distro

Skjonberg TR-8000 4 Chn. Motor Distro

Output: 4 x 7pin Socapex
Input: 1 x L21-30
Power: 208v 3 Phase, Max Operating Voltage 30Amp
Control: Tajimi 21pin
Phase Reverse Switch

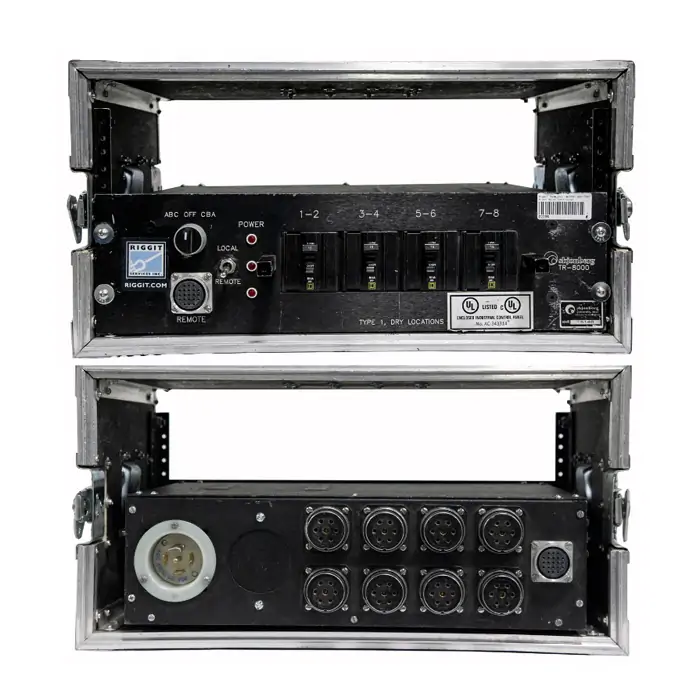

Catalogue image for Skjonberg TR-8000 or CS-800 8 Chn. Motor Distro

Skjonberg TR-8000 or CS-800 8 Chn. Motor Distro

Output: 8 x 7pin Socapex
Input: 1 x L21-30
Power: 208v 3 Phase, Max Operating Voltage 30Amp
Control: Tajimi 21pin
Phase Reverse Switch

Catalogue image for 4 Chn. or 8 Chn. Motor Distro Remote

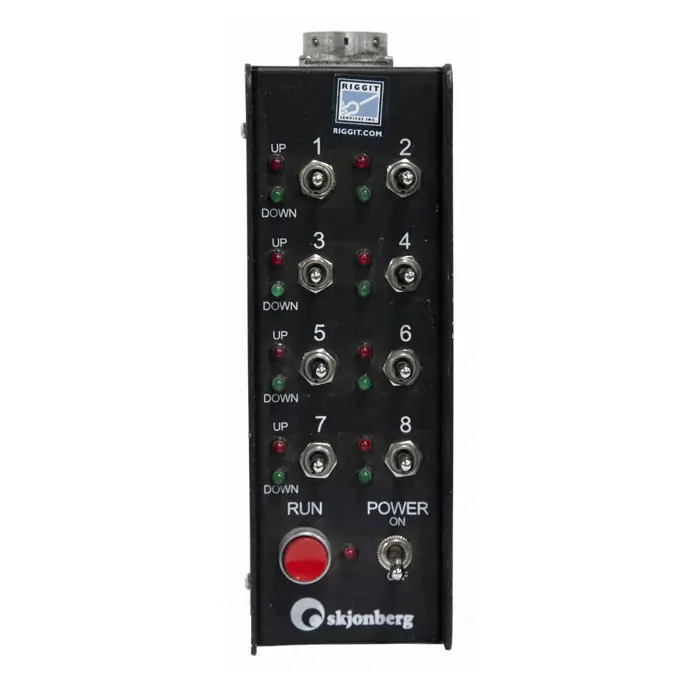

4 Chn. or 8 Chn. Motor Distro Remote

Control a single 4 or 8 Chn. motor distro. Power Switch w/ 1xTajimi 21pin Output

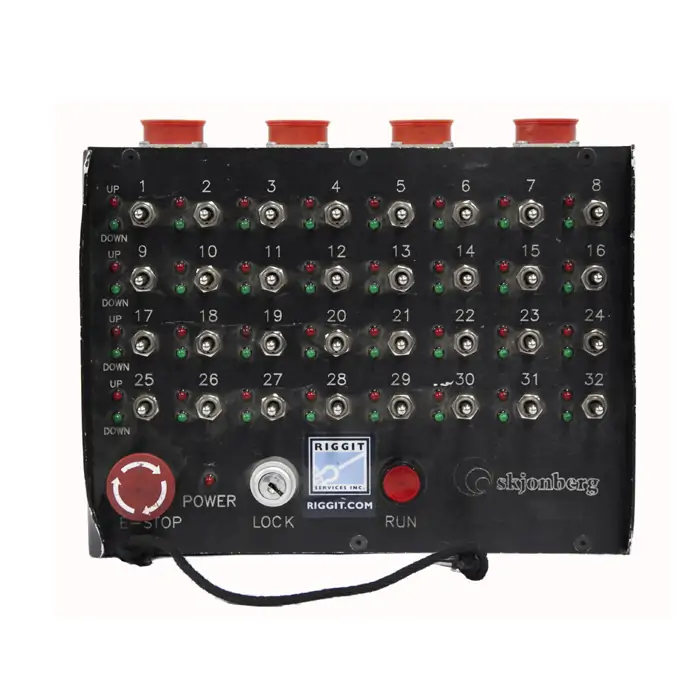

Catalogue image for Multi Way Motor Distro Remote

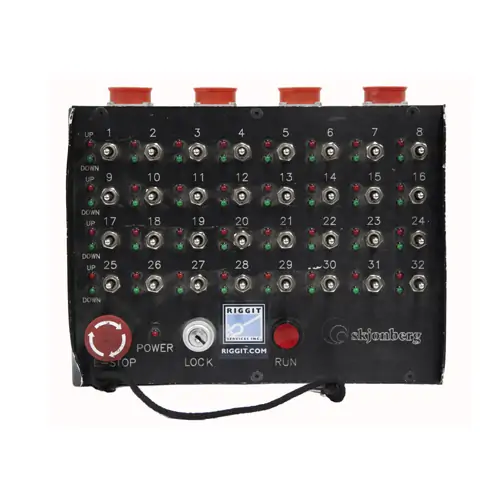

Multi Way Motor Distro Remote

Control multiple motor distros from one remote. Lock & Emergency Stop.

Available Sizes:
16-Way Control, 2 x Tajimi 21pin
24-Way Control, 3 x Tajimi 21pin
32-Way Control, 4 x Tajimi 21pin
48-Way Control, 6 x Tajimi 21pin

Catalogue image for Show SDT 2 Chn. Control Pendant

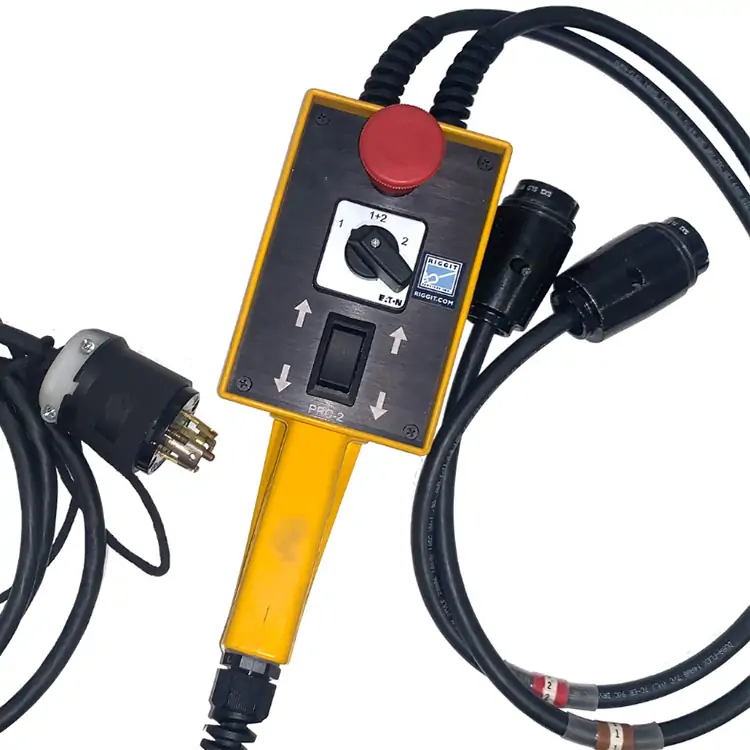

Show SDT 2 Chn. Control Pendant

Output: 2 x 7pin Socapex
Input: 1 x L21-30
Power: 208v 3 Phase, Max Operating Voltage 30Amp
Emergency Stop

Chainfalls

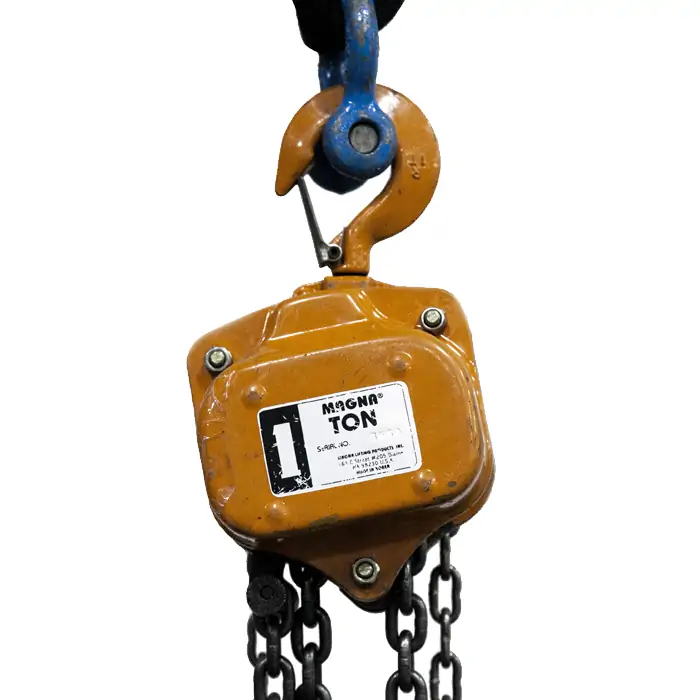

Catalogue image for Magna 1 Ton

Magna 1 Ton

35′ Lift manual chain hoist.

Also Available: Kito 1 Ton | CM 1/2 Ton | CM 1 Ton

Hardware

Catalogue image for Shackle

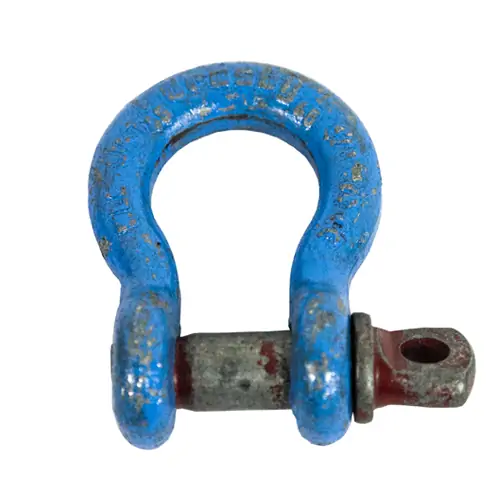

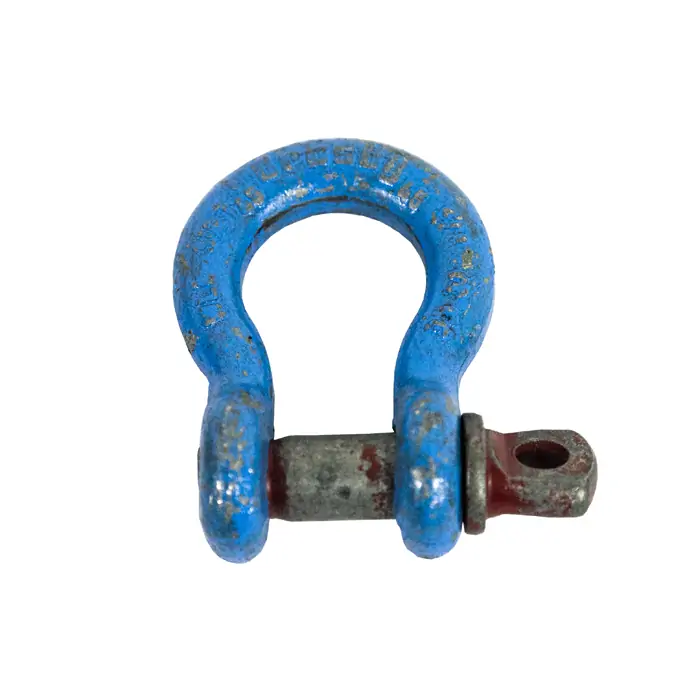

Shackle

The primary connecting link in all manner of rigging systems.

Loading Points:
The pin may only be weighted with a single point. The bell of the shackle can be weighted with multiple points within 45º of the center.

Working Load Limit (WLL):
1/4″: 1/2 Ton
5/16″: 3/4 Ton
3/8″: 1 Ton
5/8″: 3 1/4 Ton
7/8″: 6 1/2 Ton

Catalogue image for Pear Ring

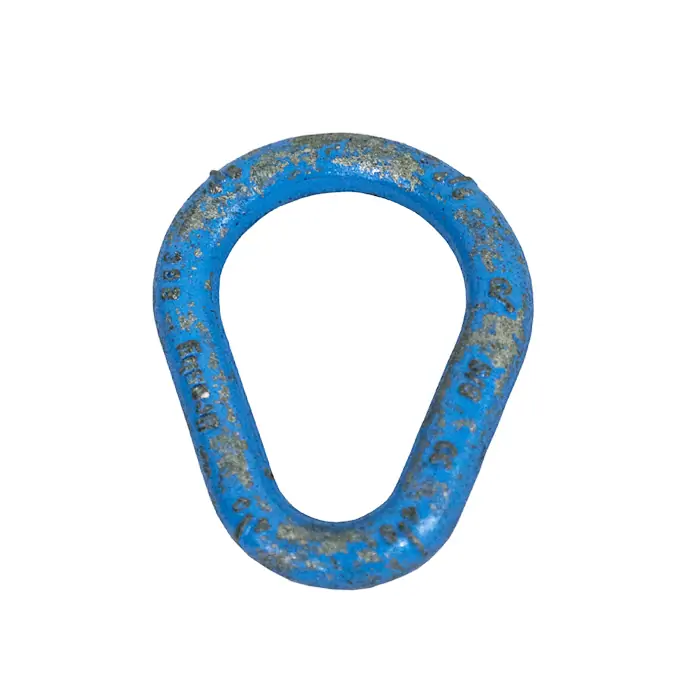

Pear Ring

Used as a top link for attaching chain slings. Used for multiple points of contact.

Working Load Limit (WLL):
3/8″: 1800 lbs.
1/2″: 2900 lbs.
5/8″: 4200 lbs.
3/4″: 6000 lbs.

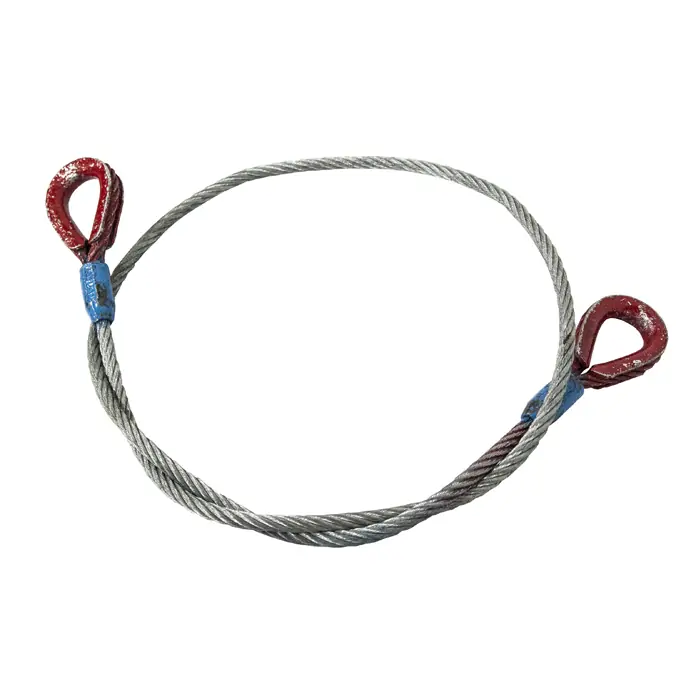

Catalogue image for Steel

Steel

Used to connect points to working load, fastening baskets and points to the anchor point.

Colour Coding:
No colour: 2.5′
Red: 5′
White: 10′
Blue: 20′
Green: 30′
Yellow: 50′

Working Load Limit (WLL):
1/8″: 250 lbs.
1/4″: 1000 lbs.
3/8″: 2000 lbs.
1/2″: 4000 lbs.

Catalogue image for Chain

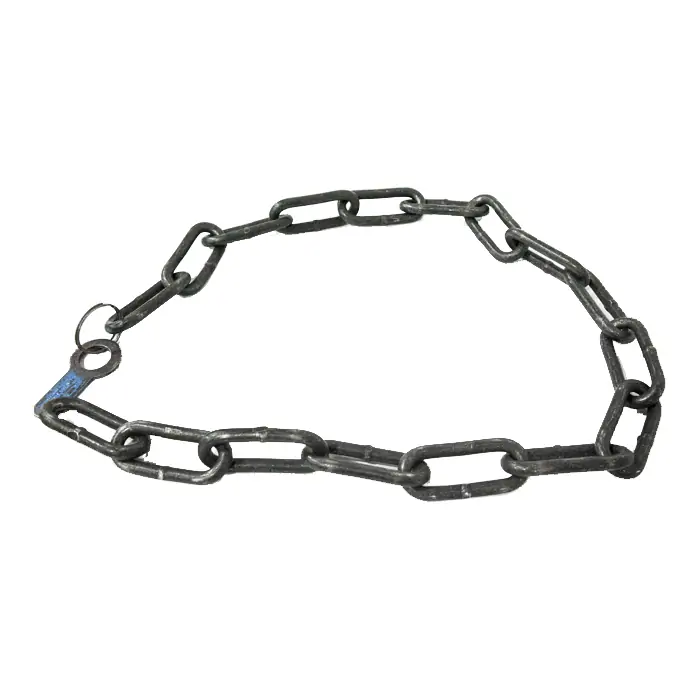

Chain

Used to make minor adjustments in leg length of a point when the appropriate length is not achievable with steel.

STAC-Chain 5′
Working Load Limit (WLL): 12000 lbs.

Studio Chain
Working Load Limit (WLL): 1500 lbs.

Catalogue image for Gac-Flex

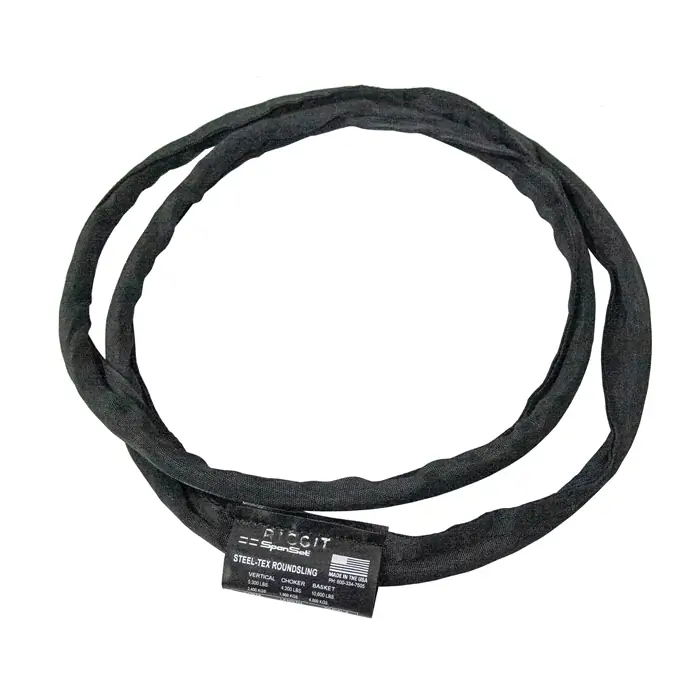

Gac-Flex

Used to sling and suspend truss. Gac-Flex is preferred over webbing due to multiple steel cores which act as a safety precaution in the event of localized fires.

Working Load Limit (WLL):
General Capacity 4000 lbs. – 5300 lbs. (please review the tag on each sling)

Available Sizes: 3′ | 4′ | 6′

Catalogue image for Round Sling

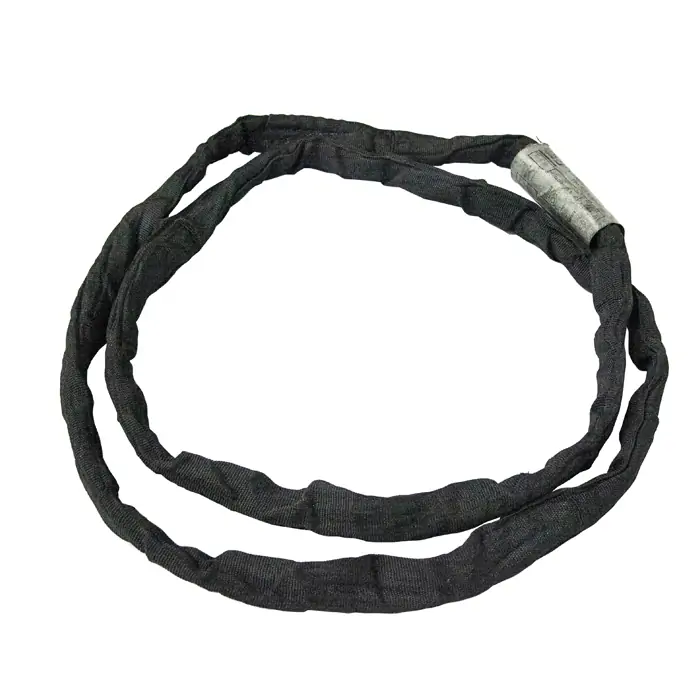

Round Sling

Used for cable picks.

Working Load Limit (WLL):
General Capacity 4000 lbs. – 5300 lbs. (please review the tag on each sling).

Available Sizes: 3′ | 4′ | 6′

Catalogue image for Sewn Sling

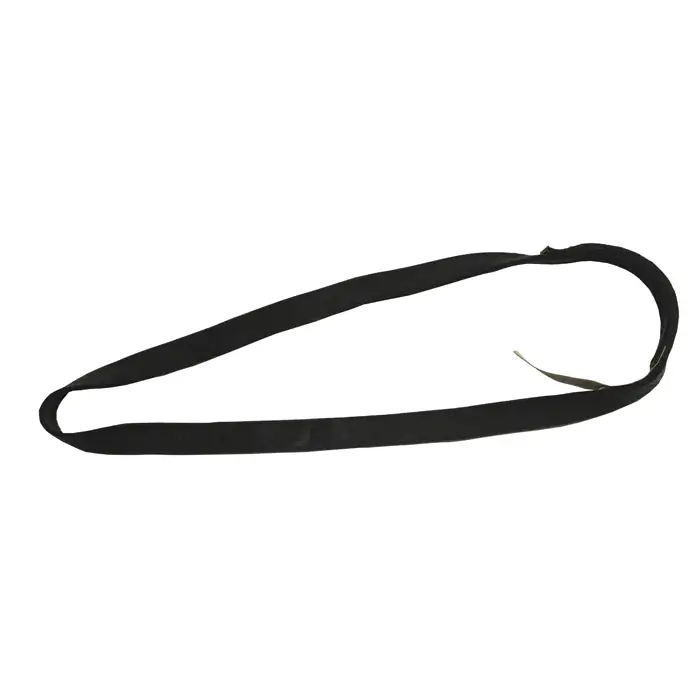

Sewn Sling

Working Load Limit (WLL):
General Capacity 1000 lbs. (please review the tag on each sling)

Available Sizes: 1′ | 2′ | 3′ | 4′

Catalogue image for Verlock

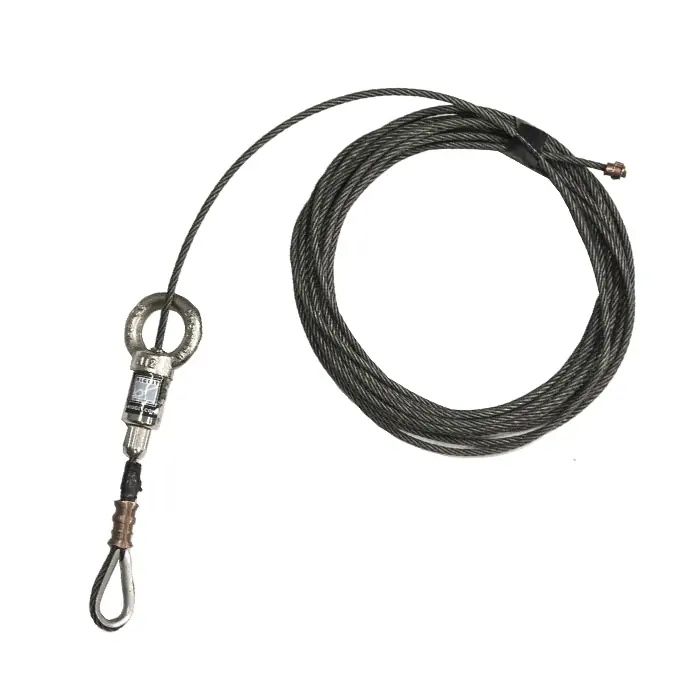

Verlock

Used to adjust the length in light loads. Must lock off with threaded screw lock. Do not pull the cable through Verlock under tension as this will damage the steel.

Working Load Limit:
1/8″: 125 lbs.
3/16″: 200 lbs.

Catalogue image for Beam Clamp

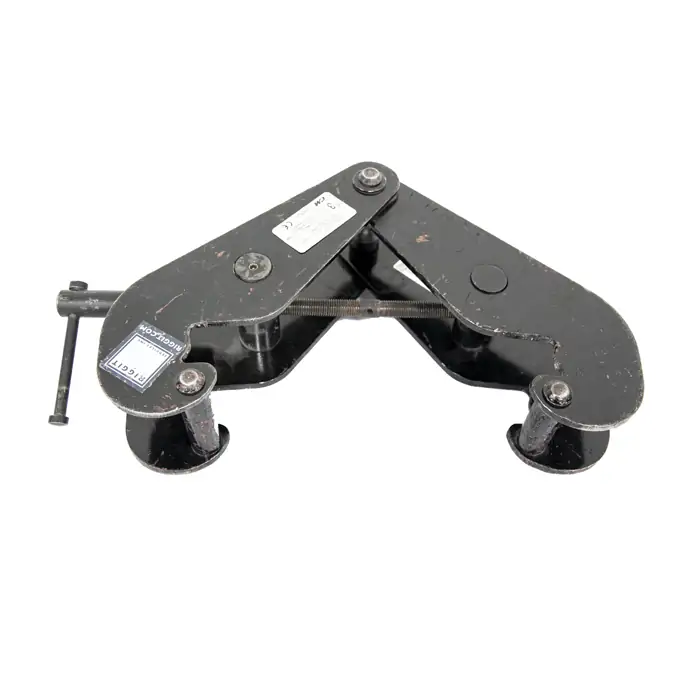

Beam Clamp

Used on beams in place of slings when access is limited. ‘Heart-shaped’ with a screw. Use correct size for weight and beam.

Available Sizes:
1 Ton | 2 Ton | 3 Ton

Catalogue image for Cheeseborough

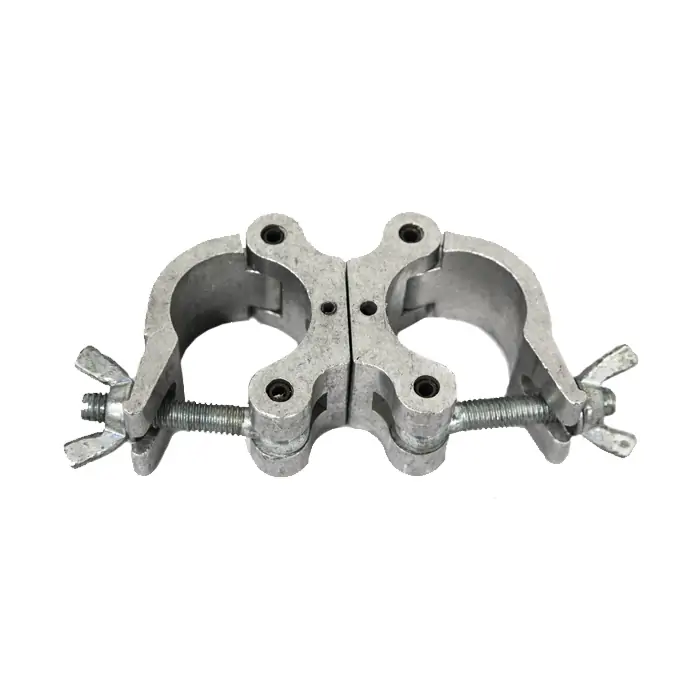

Cheeseborough

Used as attachment point mounted on pipe or truss.

Finish: Natural or Powder Coat

Working Load Limit (WLL): 1000 lbs.

Swivel: 360º movable head.
Fixed: Locked position at 90º.

Catalogue image for Cheeseborough to Eyebolt

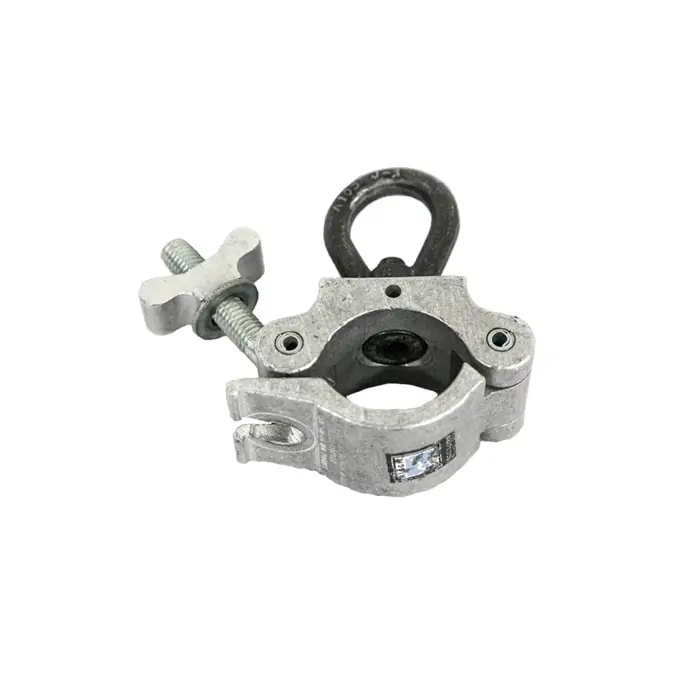

Cheeseborough to Eyebolt

Used as attachment point mounted on pipe or truss.

Finish: Natural or Powder Coat

Working Load Limit (WLL): 1000 lbs.

Eyebolt: provides an additional fixed independent attachment point.

Catalogue image for Spreader Bar

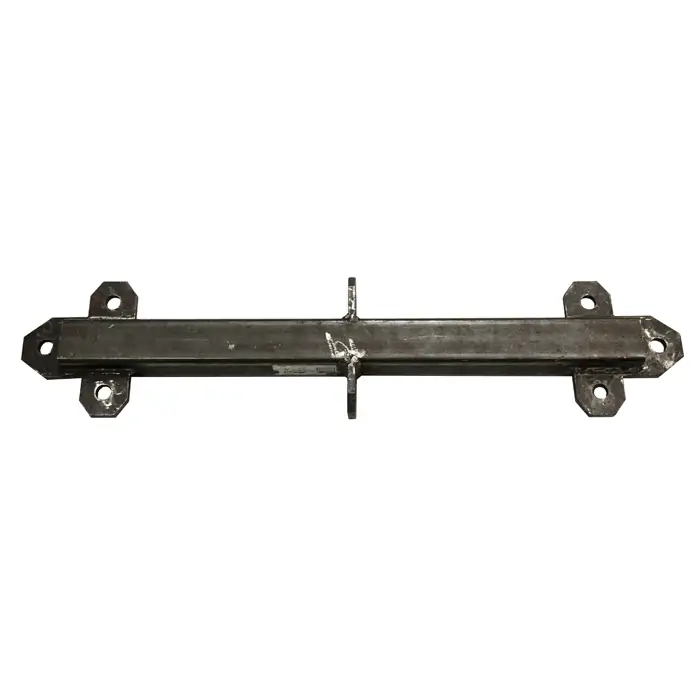

Spreader Bar

View Load Sheet PDF

39″ wide steel bar with multiple attachment points. Used to span gaps, navigate ducting, create positioning of anchor points, and gain trim height.

Lighting

LED

Catalogue image for ProLights EclipseFS LED Leko

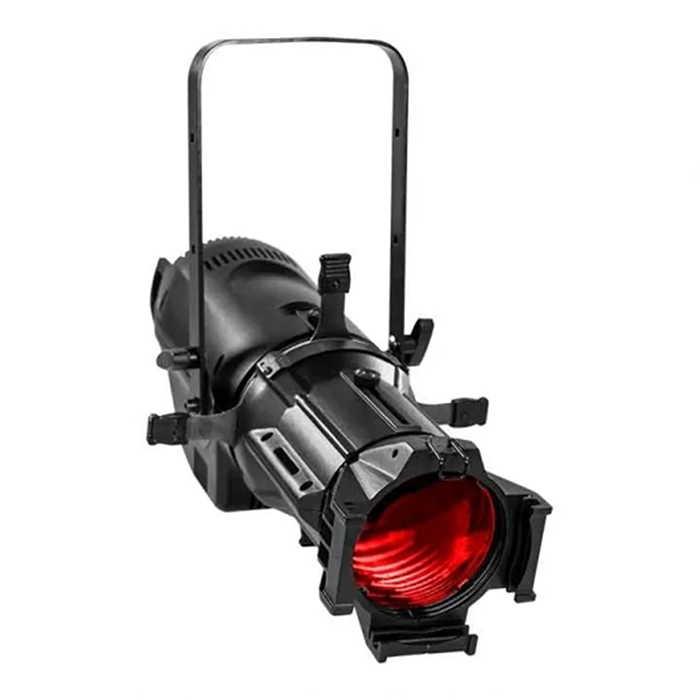

ProLights EclipseFS LED Leko

View User Manual PDF

91x3W RGB+Lime Green LEDs
Lux@3m:
(19°) 7020lux, (26°) 4960lux, (36°) 2610lux, (optics 50°) 1190lux
Lenses:
5˚ | 10˚ | 19˚| 26˚| 36˚| 50˚| 70˚
Profile:
Default 5 Channels (1, 3, 4, 5, 8, 13 channel options)
Data:
XLR5 In & Out
Amps:
2A @ 120v, 0.86A@ 208v
Power:
True1 In & Out w/ L5-20 Adapters. Edison available by request.
Weight:
Weight w/o Lens: 16.09lbs
5° Lens: 8.5 lbs
10° Lens: 5 lbs
19-70° Lens: 4 lbs

Accessories:
B Size Gobo Holder

Catalogue image for Elation KL Fresnel 8 FC

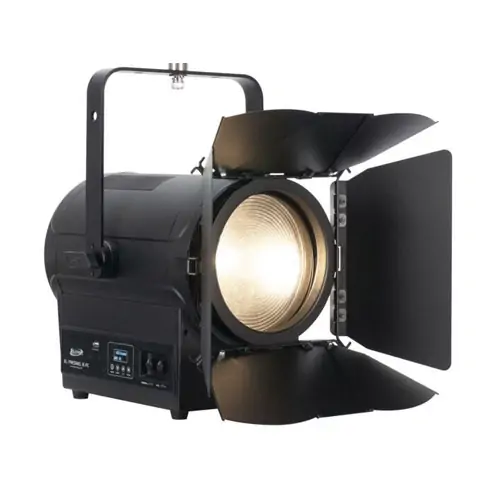

Elation KL Fresnel 8 FC

View User Manual PDF

RGBMA LED Engine
Dynamic White + Full Spectrum Color Control
Variable CCT 2,400K – 8,500K
18,000+ Total Lumen Output

Zoom Range: 10° – 50°
Field Angle: 21° – 66.6°
Profile: Default 12 Channel Mode
Amps: 4.29 @ 120v, 2.47 @ 208v
Data: XLR5 In & Out
Power: True1 In & Out
Weight: 23.15 lbs
Accessories: 8-leaf Barn Doors, Gel Frame

Catalogue image for ADJ Encore LP12Z IP

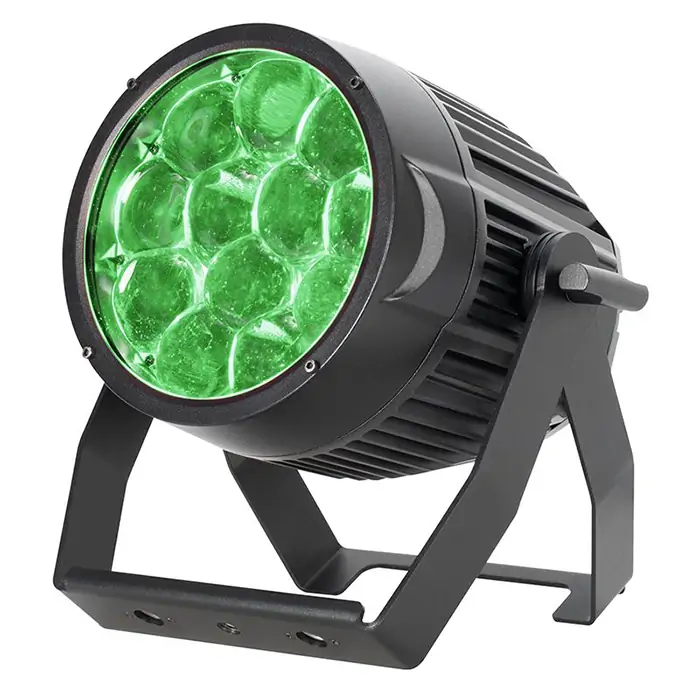

ADJ Encore LP12Z IP

View Load Sheet PDF

This IP65-rated fixture comes equipped with 12 Quad RGBL (Red, Green, Blue, and Lime) LEDs, a motorized zoom feature with a beam angle of 5° to 30° and wireless DMX onboard.

Light Source: 12 x 20-Watt Quad RGBL LEDs
Color Temperature: 2700K to 6500K
CRI: 84.4
LumensOutput: 4400
Zoom Range: 5° – 30°
Field Angle: 9° – 50°
Profile: Default 6 Channel Mode
Amps: 1.89 @ 120v, 1.09 @ 208v
Daisy chain: 6 @ 120V, 12 @ 220V
Data: XLR5 In & Out
Power: True1 In & Out
Weight: 16.6 lbs

Catalogue image for Ovation Mini Fresnel 50TZ

Ovation Mini Fresnel 50TZ

View Load Sheet PDF

50Watt tunable white LED Fresnel
50W warm white + 50W cool white
2700K – 6500K tunable
CRI 95, R9≥90, TLCI 98, CQS 96

Zoom Range:
25° – 80° Manual
Profile:
Default 3 Channel Mode
Amps:
1.2A @ 120v
Data:
XLR5 In & Out
Power:
PowerCON In w/ L5-20 Adapters
Weight:
4.8lbs
Accessories:
Gel Frame, 4 Leaf Barn Doors

Catalogue image for ETC S4 LED Leko Series 2 Lustr

ETC S4 LED Leko Series 2 Lustr

60-LED array

Lenses:
5˚| 10˚| 19˚| 26˚| 36˚| 50˚| 70˚
Amps:
1.4A @ 120v
Data:
XLR5 In & Out
Power:
PowerCON In & Out w/ L5-20 Adapters
Weight w/o Lens: 18lbs

Accessories: Gel Frame, Gobo Holder, Top Hat, Donut

Catalogue image for Elation Sixpar 200 RGBAW+UV

Elation Sixpar 200 RGBAW+UV

RGBAW + UV

Lens:
15˚
Profile:
7 Channel Mode
Amps:
1.25A @ 120v. 0.72A @ 208v
Data:
XLR5 In & Out
Power:
True1 In & Out
Weight:
18lbs

Available w/ IP65 Rating By Request

Catalogue image for Elation ELAR 108 Par RGBW

Elation ELAR 108 Par RGBW

RGBW

Lens:
13˚
Profile:
5 Channel Mode
Amps:
1.0A @ 120v
Data:
XLR5 In & Out
Power:
True1 In & Out
Weight:
5.4lbs

Accessories:
40˚Diffusion Filter

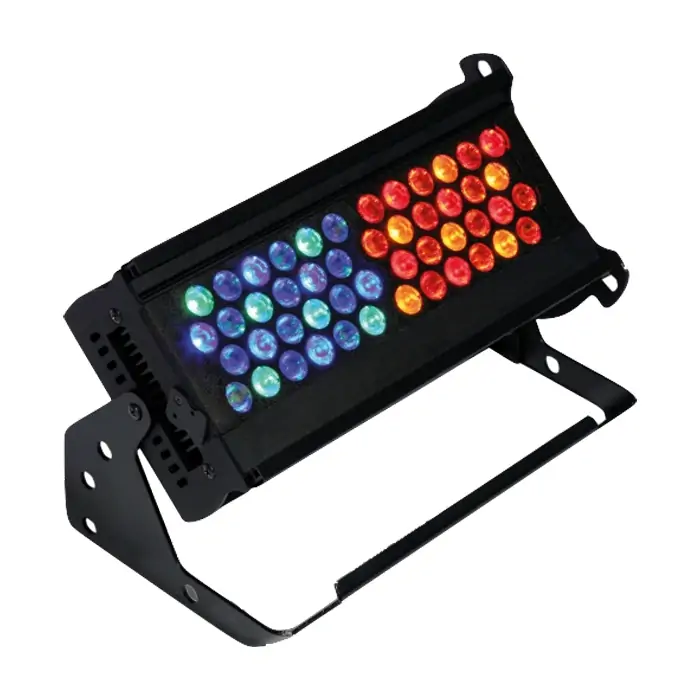

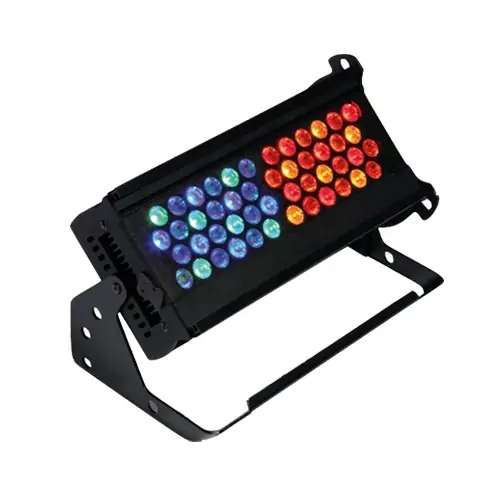

Catalogue image for Chroma-Q CF-12 Color Force RGBA

Chroma-Q CF-12 Color Force RGBA

View User Manual PDF

RGBA LED
12 Red / 12 Green / 12 Blue / 12 Amber LEDS

Lumens:
2,400
Beam:
23˚
Profile:
Default Mode 9 – 4 channels
Amps:
1A @ 120v, 0.6A @208v
Data:
XLR5 In and Out
Power:
PowerCON In & Out w/ L5-20 Adapters
Weight:
9lbs

Accessories:
Gel Frame, Barn Door, Cyc Lens, Border Lens

Catalogue image for CF-72 Color Force RGBA

CF-72 Color Force RGBA

RGBA LED

Lumens:
12,000
Beam:
23˚
Profile:
Default Mode 9 – 4 Channels
Amps:
5.5A @ 120v, 3.1A @208v
Data:
XLR5 In & Out
Power:
PowerCON In & Out w/ L5-20 Adapters
Weight:
48lbs

Catalogue image for CFII-12 Color Force II RGBA

CFII-12 Color Force II RGBA

RGBA LED

Lumens:
3,600
Beam:
22˚
Profile:
Default Mode 9 – 4 Channels
Amps:
1.2A @ 120v, 0.65A @208v
Data:
XLR5 In & Out
Power:
True1 In & Out
Weight:
11.2lbs

Catalogue image for CFII-72 Color Force II RGBA

CFII-72 Color Force II RGBA

RGBA LED

Lumens:
18,600
Beam:
22˚
Profile:
Default Mode 9 – 4 Channels
Amps:
6.7A @ 120v, 3.9A @208v
Data:
XLR5 In & Out
Power:
True1 In & Out
Weight:
53lbs

Catalogue image for Color Force 12 Lenses

Color Force 12 Lenses

Cyc:
Widens the beam angle to 80° x 35°

Border:
Widens the beam angle to 43° x 43°

Catalogue image for Chroma-Q Studio Force 12

Chroma-Q Studio Force 12

View User Manual PDF

3,000K – 6,100K CCT Variable White
24 Cold White LED / 24 Warm White LED

Lumens:
5300
Beam:
23˚
Profile:
Default Mode 2 – 3 Channel
Amps:
1.25A @ 120v, 0.72A @ 208v
Data:
XLR5 In & Out
Power:
PowerCON In & Out w/ L5-20 Adapters
Weight:
9lbs

Accessories:
Gel Frame, Barn Door, Cyc Lens, Border Lens

Moving Lights

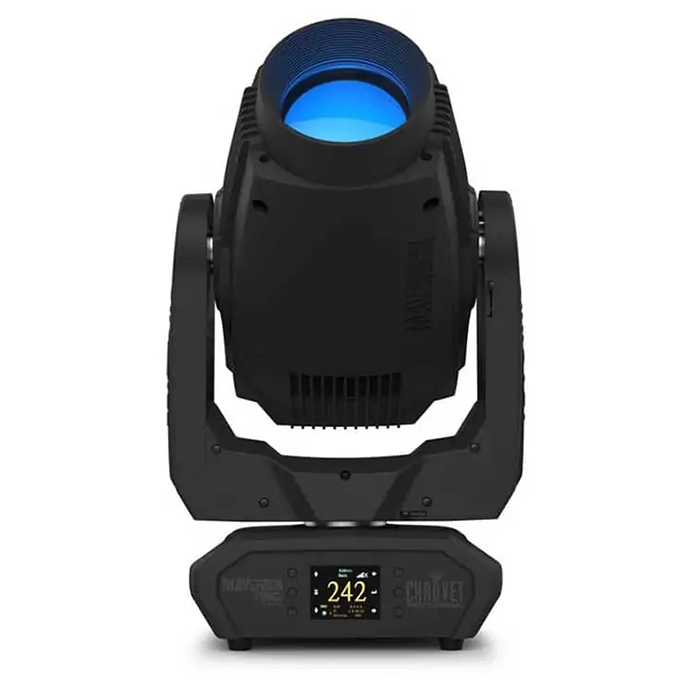

Catalogue image for Maverick Force 1 Spot

Maverick Force 1 Spot

View User Manual PDF

A lightweight moving head with an output of 20,000 lumens. Features CMY + CTO color-mixing, a color wheel with a CTB and CRI option, and an extensive zoom range of 7 to over 50 degrees. Motorized iris, focus, zoom, and frost capabilities, alongside a 5-facet rotating prism give an abundance of tools for beam shaping as well. Two gobo wheels, one rotating, and one static, and an animation wheel. Control with DMX, sACN, Art-Net or W-DMX.

Light Source: 1 LED (CW) 470 W, (4 A)
Colour Temperature (at full): 7099 K, CRI: 68.8
LumensOutput: 21,172
Lux @ 5 m (6.3°): 43,485
Lux @ 5 m (54.4°): 1,793
Zoom Range: 6.3° to 54.4°
Field Angle: 7.3° to 53°
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Profile: Default 25 Channel Mode
Amps: 5.45 @ 120v, 3.1 @ 208v
Data: XLR5 In & Out
Power: True1 In & Out
Weight: 48 lb

Catalogue image for Rogue Outcast 1L Beam IP65

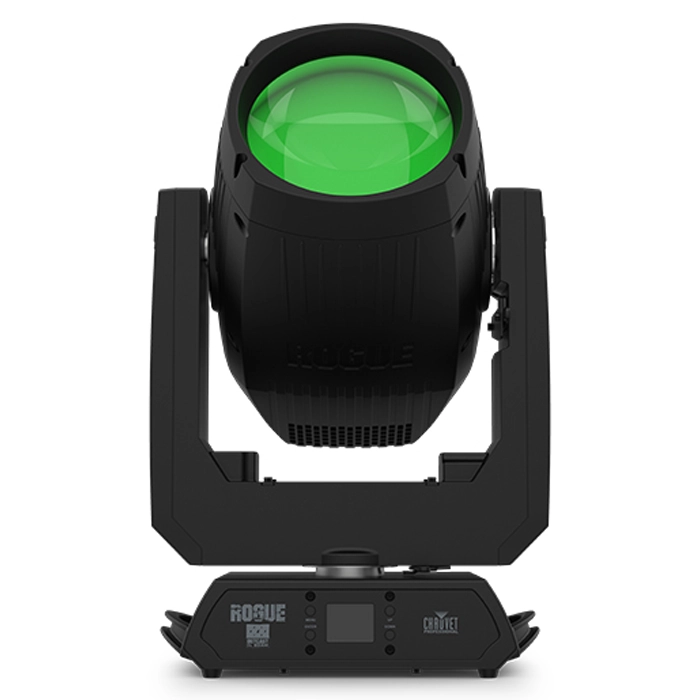

Rogue Outcast 1L Beam IP65

View Load Sheet PDF

Fully featured, high powered IP65 rated LED beam fixture
Lightweight and durable
Fast and precise movement of pan and tilt functions
Individually controllable and layerable 5- and 8-facet prisms
Frost for softening beam edges and effects
RDM enabled for remote addressing and troubleshooting
7 rotating and 7 static gobos on one wheel for dynamic gobo effects

Light Source: 1 LED (CW) 140 W, (4 A)
Color Temperature (at full): 6928 K
CRI: 69.3
LumensOutput: 3218
Lux @ 5 m: 224,670
Beam Angle: 1.4°
Field Angle: 1.7°
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Profile: Default 15 Channel Mode
Amps: 2.08 @ 120v, 1.15 @ 208v
Data: XLR5 In & Out
Power: True1 In & Out
Weight: 35.4 lb

Catalogue image for Rogue Outcast 2X Wash IP 65

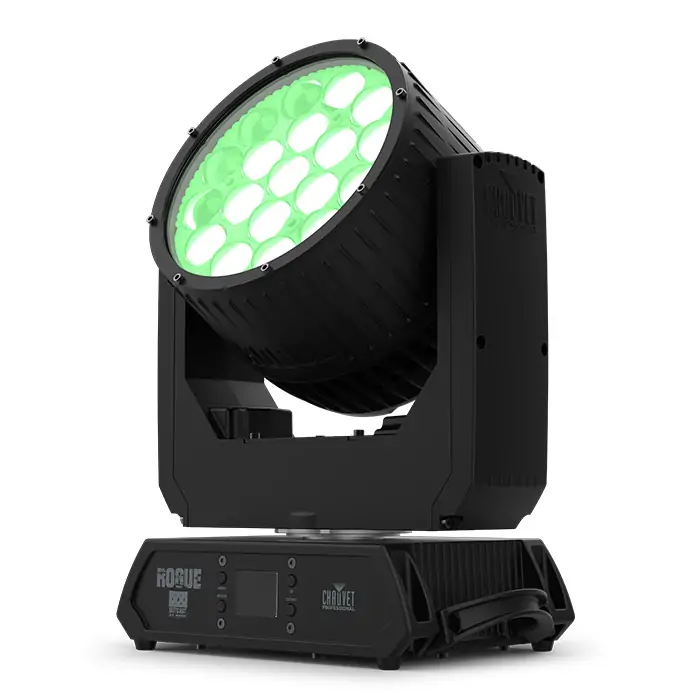

Rogue Outcast 2X Wash IP 65

View Load Sheet PDF

Fully featured IP65 rated RGBW LED yoke wash fixture
Durable and lightweight
Smooth fades with 16-bit individual color and master dimming
5 zones of LED control for pixel mapping control
Fast, smooth pan and tilt movement
Selectable PWM options for camera operation
User selectable calibrated white, 7500K default calibration
6 distinct dimming modes for advanced control

Light Source: 19 LEDs (quad-color RGBW) 25 W, (1.5 A)
Color Temperature (range): 2800 to 10000 K
CRI: 69.3
LumensOutput: 6,258
Lux @ 5 m: 11.8°: 8,713 lux, 53°: 694 lux
Zoom Range: 8° to 66°
Beam Angle: 8° to 36.1°
Field Angle: 11.8° to 53°
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Profile: Default 17 Channel Mode
Amps: 2.47 @ 120v, 1.41 @ 208v
Data: XLR5 In & Out
Power: True1 In & Out
Weight: 23.4 lbs

Catalogue image for Selection of Martin Fixtures

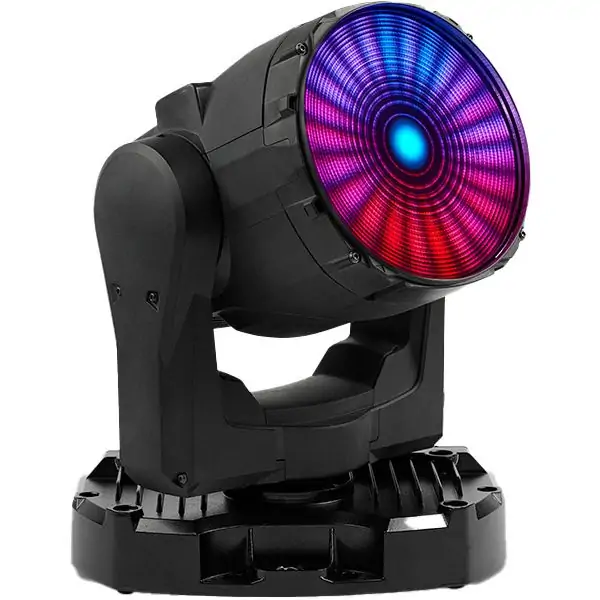

Selection of Martin Fixtures

Catalogue image for Elation Platinum

Elation Platinum

Catalogue image for Beam ZW19/37

Beam ZW19/37

Catalogue image for Clay Paky Sharpy

Clay Paky Sharpy

Atmospherics

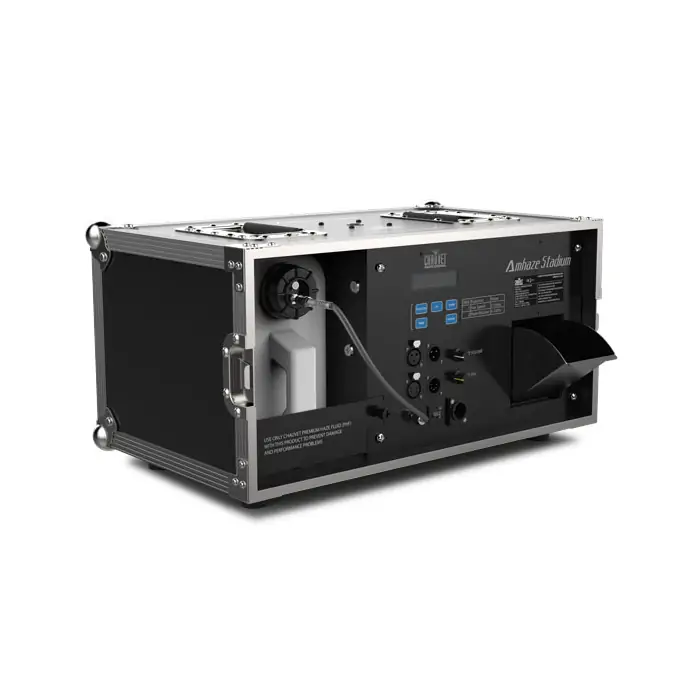

Catalogue image for Chauvet Amhaze Stadium

Chauvet Amhaze Stadium

View Load Sheet PDF

Professional water-based haze machine
30-sec heat up time nearly eliminates wait time for operation
Adjustable vent louver for directional haze flow
Tour-ready with a rugged road case and M12 threaded rigging insert
Efficient fluid consumption lasts up to 11 hours on a single fluid container
Achieve continuous variable haze output and blower speed, adjusted via DMX or manual knobs

Airflow: 157 cfm
Low Fluid Shutdown: Yes
Tank Capacity: 1.3 gal (4.92l)
Fluid Consumption: 9.5 ml/min (0.15 gallons/hour)
Profile: 2 Channel Mode
Amps: 10.25 @ 120v
Data: XLR5&3 In & Out
Power: True1 In
Weight: 38.4 lbs

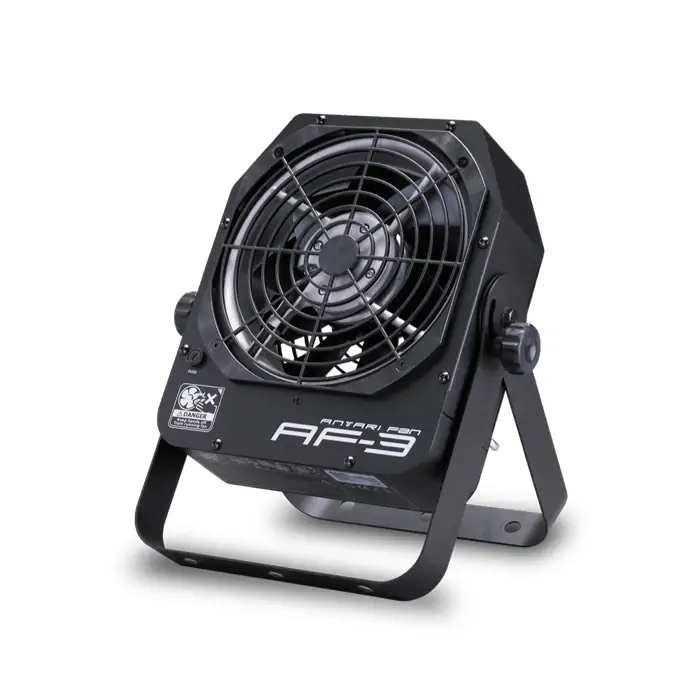

Catalogue image for Antari AF-3 Fan

Antari AF-3 Fan

View Load Sheet PDF

The AF-3 is a compact all-purpose stage fan with linear output control, low power consumption, adjustable blowing directions, and durable metal housing. Total power consumption is merely 120W. The attached bracket enables various output directions within 90 degrees while hanged or placed on the floor.

Airflow: 530 cfm
Fan Speed: 750-2550 rpm
Profile: 1 Channel Mode
Amps: 1.1 @ 120v
Data: XLR5 In & Out
Power: Powercon In & Out
Weight: 13.23 lbs

Consoles

Catalogue image for MA Lighting Consoles

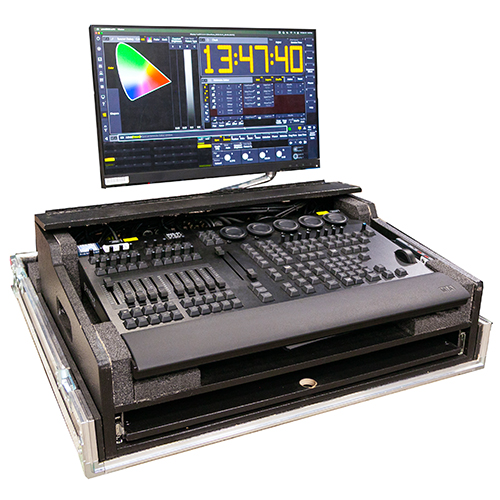

MA Lighting Consoles

MA3 Full-size 8,192 Ch Console
MA3 Light 4,096 Ch Console
MA3 Compact 4,096 Ch Console
MA2 Full-size 8,192 Ch Console
MA2 Light 4,096 Ch Console
MA2 Ultra Light 4,096 Ch Console
MA2 OnPC

Catalogue image for ETC Color Source 20 Console

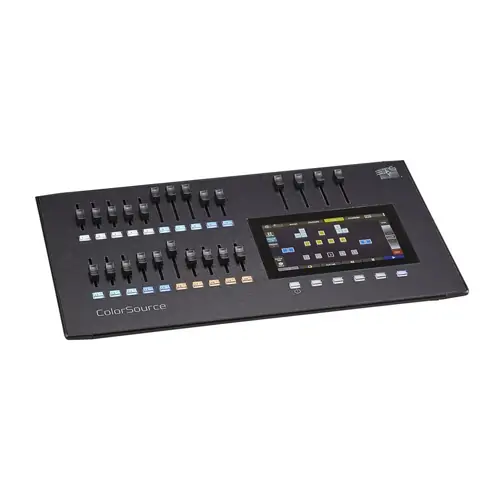

ETC Color Source 20 Console

View User Manual PDF

80 control channels/devices
7″ integrated multi-touch display
4 user-definable master faders
5 user-definable buttons for common commands
Virtual level/rate paddle
Cue list record and playback functions
Non-intensity parameter control
Color, Position and Beam Pallettes
Color, intensity, position and parameter effects
Onboard help system
Simple Mode operation for 4 looks
Playback Toy for live busking

USB: 1 x USB Port for Mouse or USB storage drive
Output: 1 x DMX XLR5
Power: Edison

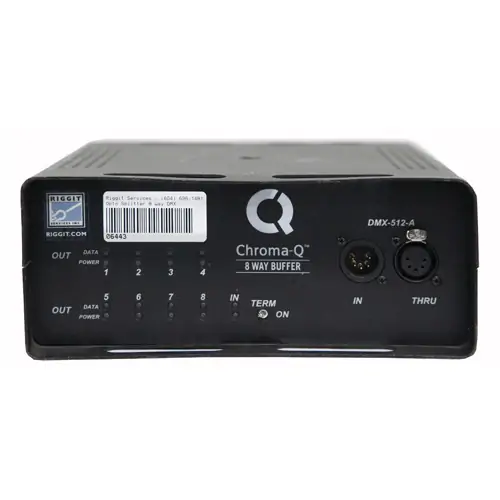

Catalogue image for Chroma-Q Opto Splitter 8 Way DMX

Chroma-Q Opto Splitter 8 Way DMX

Termination Switch
Input: 1 x DMX XLR5
Output:
8 x DMX XLR5
1 x DMX XLR5 Thru
Power: IEC Edison or IEC L5-20

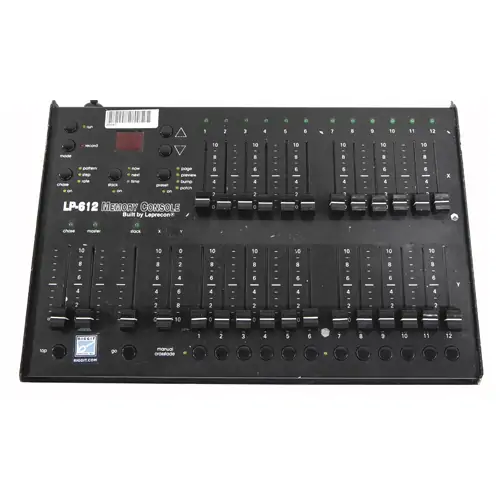

Catalogue image for Leprecon LP612 Console

Leprecon LP612 Console

View User Manual PDF

1 DMX universe up to 96 channels, patch to 12 channels.
Modes: 2 scene preset, or 12 channel & 12 submasters
Output: DMX XLR5
Power: Edison

Power Distro

Catalogue image for Motion Labs 120/208V 200Amp Distro Rack

Motion Labs 120/208V 200Amp Distro Rack

Built-In Digital Voltage and Amperage Display

Main Breaker:
200Amp
Output:
15 x L21-30 w/ Individual Breakers
3 x 120V 19pin Socapex w/ Individual Circuit Breakers
1 x 208V 19pin Socapex w/ Individual Circuit Breakers (CL Pin Out)
4 x 5-20 Duplex Convenience w/ Individual Breakers
Input:
E1016 Cam-Lok In and Thru, w/ Ground and Neutral Reversed
Power:
208V 3 Phase

Catalogue image for LEX 30Amp Bento Box

LEX 30Amp Bento Box

6 x 20Amp 120V Breakers, 30Amp Max Output

Output:
1 x 19pin Socapex
1 x 5-20 Convenience Duplex
Input:
1 x L21-30

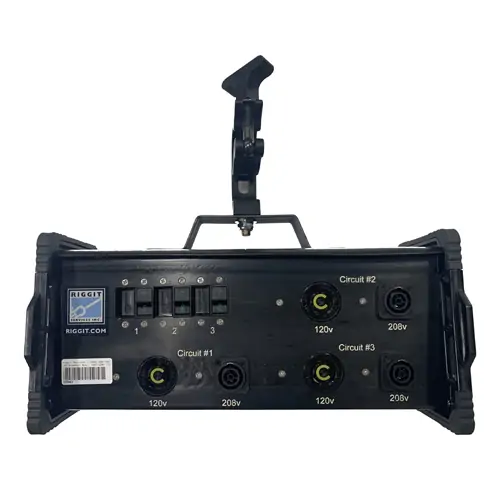

Catalogue image for LEX 30Amp - 120/208v Breakout Box

LEX 30Amp - 120/208v Breakout Box

3 x 20Amp 120/208v Breakers, 30Amp Max Output
Output:
1 x 1L21-30 120/208V
3 x L5-20 120v
3 x True1 208v
Input:
1 x L21-30

Catalogue image for LEX 200Amp 120/208V Pagoda

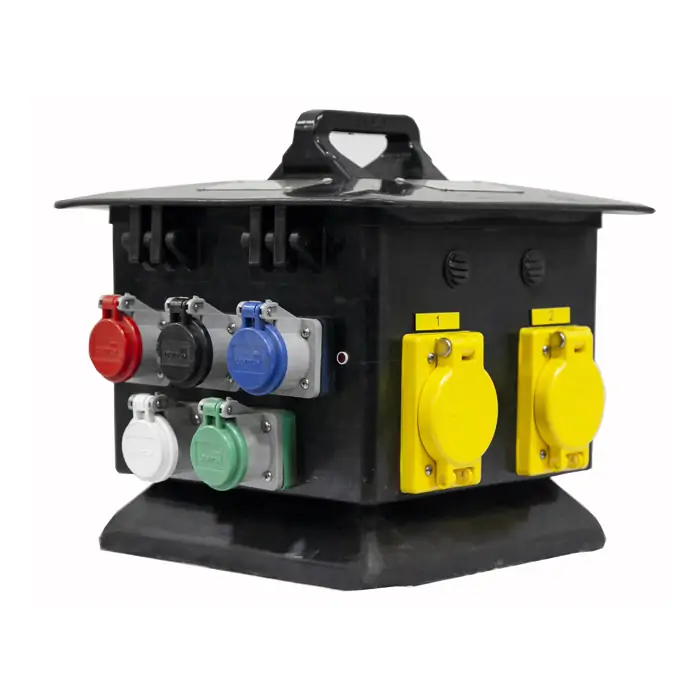

LEX 200Amp 120/208V Pagoda

Powers up to 4 motor distros.

Output:
4 x L21-30 w/ Individual Breakers
2 x 5-20 Duplex Convenience Outputs w/Individual Breakers
Input:
E1016 Cam-Lok w/ Ground and Neutral Reversed
Environmental Rating:
NEMA Type 3R (Weather Resistant)

Catalogue image for MLD Main

MLD Main

Main Breaker:
225Amp
Output: w/ Individual Breakers
6 x C5 30Amp
3 x L5-20
Input:
E1016 Cam-Lok In & Thru, w/ Ground & Neutral Reversed

Catalogue image for DPD 2

DPD 2

Output:
w/ Individual Breakers
2 x C5 30Amp
3 x L5-20
2 x 175Amp E1016 Cam-lok
Input:
E1016 Cam-Lok In & Thru,
w/ Ground & Neutral Reversed

Catalogue image for MLD 120

MLD 120

6 x 20Amp 120V Breakers

Output:
6 x L5-20
1 x 19pin Socapex
Input:
1 x C5 30Amp

Catalogue image for MLD 208

MLD 208

6 x 15Amp 208V Breakers

Output:
6 x L6-15
1 x 19pin Socapex
Input:
1 x C5 30Amp

Catalogue image for MPD-1

MPD-1

Output:
2 x C5 30Amp w/ Individual Breakers
Input:
E1016 Cam-Lok w/ Ground and Neutral Reversed

Dimming

Catalogue image for 24 x 2.4K Sensor Dimmer Pack CEM+

24 x 2.4K Sensor Dimmer Pack CEM+

View User Manual PDF

CEM+ Controller
24 x 2400Watt Max Channel

Output:
4 x 19pin Socapex Outputs & 24 x L5-20
Input:
E1016 Cam-Lok, w/ Ground and Neutral Reversed
Data:
2 x DMX512 In, 2 x DMX512 Thru, 1 x Ethernet
Power:
208V 3 Phase

Catalogue image for 12 x 2.4K Sensor Dimmer Pack MPE

12 x 2.4K Sensor Dimmer Pack MPE

View User Manual PDF

MPE Controller
12 x 2400Watt Max Channel

Output:
4 x 19pin Socapex Outputs (2 x Circuit1-6, 2 x Circuit 7-12)
Input:
E1016 Cam-Lok, w/ Ground and Neutral Reversed
Data:
1 x DMX512 In, 1 x DMX512 Thru, 1 x AMX XLR4 In, 1 x AMX XLR4 Thru
Power:
208V 3 Phase

Catalogue image for Dimmer Module

Dimmer Module

View Load Sheet PDF

2 x 20Amp Circuits, Dimmable

Catalogue image for Constant Current Module

Constant Current Module

View Load Sheet PDF

2 x 20Amp Circuits, Constant Power

Catalogue image for 4 x 750W Leprecon Dimmer

4 x 750W Leprecon Dimmer

View User Manual PDF

Output:
4 x L5-20 750 Watt
Input:
2 x L5-20 120v
Data:
1 x 5pin DMX In & Thru
